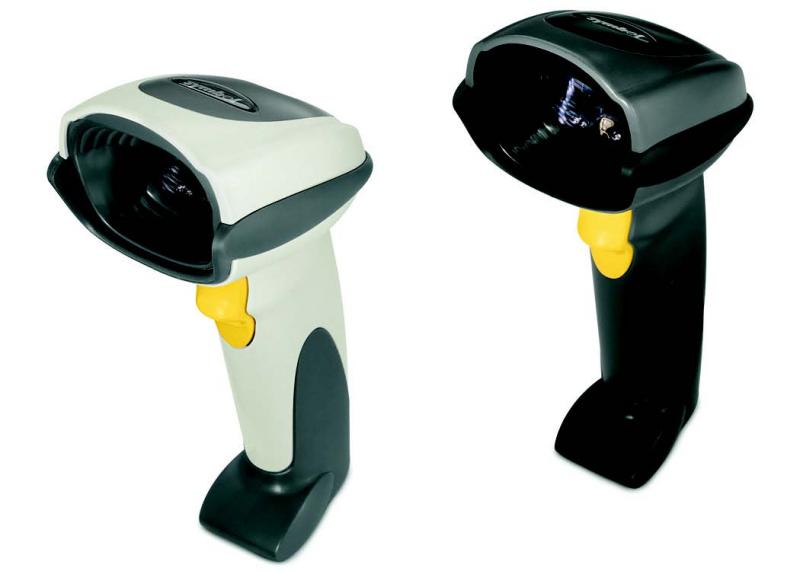

DS 6708

Light Source : (Aiming) 650 nm Laser Diode ; (Illumination) 630 nm LED
Decode Capability : 1-D, PDF417, microPDF417, Composite Codes, MaxiCode, DataMatrix (ECC 200), and QR Code, Postals
Depth of field : (Standard range) 34。V x 43。H ;
(Document capture) 35。V x 44。H
System Interfaces : PC Keyboard Wedge, RS232, USB
Hand-free Scanning : Intellistand

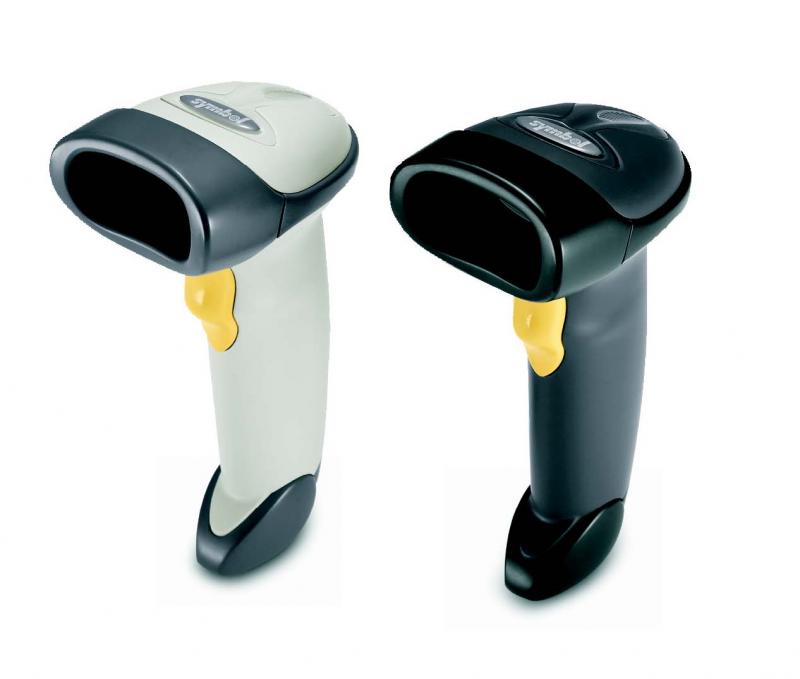

LS 2208

Light Source : 650 nm Visible Laser Diode
Scan Speed : 100 scans per second typical
Depth of Scan Field : 0 in. to 17 in. (0 cm to 43cm) on 100% U.P.C./EAN symbols
System Interfaces : PC Keyboard Wedge, RS232, USB
Hand-free Scanning : Intellistand
Shock : Designed to withstand 1.5 m (5’) drops

LS 4208

Light Source : 650 nm Laser Diode
Scan Speed : 200 decodes per second
Depth of Scan Field : 0 in. to 29 in. (0 cm to 73.66cm)
System Interfaces : PC Keyboard Wedge, RS232, USB
Hand-free Scanning : Intellistand
Scan Pattern : Multi-line rastering

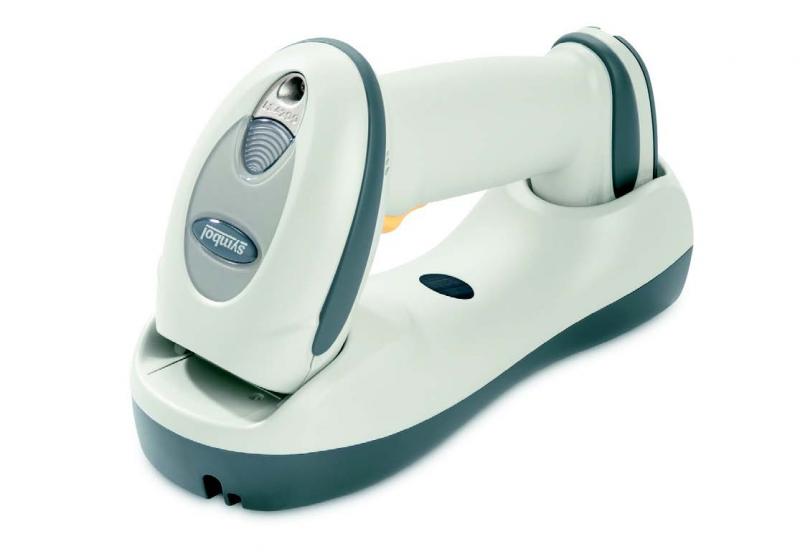

LS 4278

Light Source : 650 nm Laser Diode
Scan Speed : 200 decodes per second
Depth of Scan Field : 0 in. to 29 in. (0 cm to 73.66cm)
System Interfaces : PC Keyboard Wedge, RS232, USB
Radio Range : Bluetooth class 2, minimum 33 ft. (10 m)
Scan Pattern : Multi-line rastering

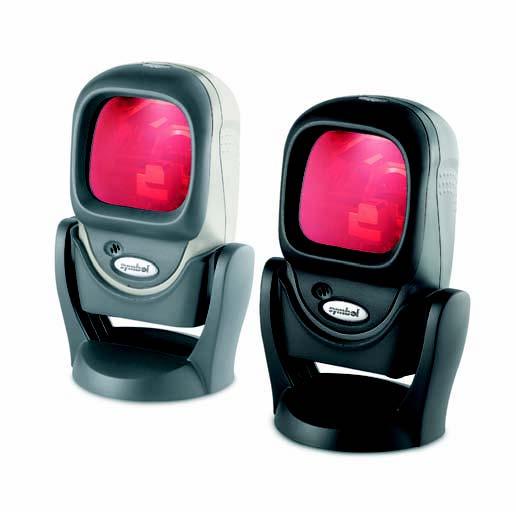

LS 9208

Light Source : 650 nm Visible Laser Diode
Scan Speed : (Omni-directional) 1500 scans/second ; (Single scan line) 75 scans/second
Depth of Scan Field : 0 in. to 9 in. (0 cm to 22.9m)
System Interfaces : PC Keyboard Wedge, RS232, USB
Scan Pattern : Single scan line ; 20 interlocking lines (Omni-directional)
Special Features : Adjustable multimount stand

MS 1690

Light Source : LED 645 nm + 7.5 nm
Decode Capability : All standard 1-D, RSS, PDF417, microPDF, MaxiCode, Data Matrix, QR Code, UCC, EAN Composites, Postals, Aztec
Depth of Scan Field : 0 mm - 254 mm (0" - 10") for 0.33 mm (13 mil) bar codes
Minimum element width : 0.127 mm (5 mil) for 1D ; 0.254 mm (10 mil) for 2D
System Interfaces : PC Keyboard Wedge, RS232, USB

MS 5145

Light Source : Visible Laser Diode 650 nm + 10nm
Scan Speed : 72 scans lines per second
Depth of Scan Field : 0 mm - 140 mm (0" - 5.5") for 0.33 mm (13 mil) bar codes
Minimum Bar Width : 0.102 mm (4 mil)
System Interfaces : PC Keyboard Wedge, RS232, USB
Shock : Designed to withstand 1.5m (5’) drops

MS 7120

Light Source : Visible Laser Diode 650 nm + 10 nm
Scan Speed : 1120 scan lines per second
Scan Pattern : 5 fields of 4 parallel lines (Omni-directional)
Depth of Scan Field : 0 mm - 215 mm (0" - 8.5") for 0.33 mm (13 mil) bar codes
Minimum Bar Width : 0.13 mm (5.2 mil)
System Interfaces : PC Keyboard Wedge, RS232, USB

MS 9535

Light Source : Visible Laser Diode 650 nm + 10 nm
Scan Speed : 100 scan lines per second + 2
Depth of Scan Field : 0 mm - 229 mm (0" - 9") for 0.330 mm (13 mil) bar codes
Minimum Bar Width : 0.102 mm (4 mil)
System Interfaces : PC Keyboard Wedge, RS232, USB
Radio Range : Bluetooth class 2; 10 m (33")

MS 9540

Light Source : Visible Laser Diode 650 nm + 10nm
Scan Speed : 72 scan lines per second + 2
Depth of Scan Field : 0 mm - 203 mm (0" - 8") for 0.330 mm (13 mil) bar codes
Minimum Bar Width : 0.127 mm (5 mil)
System Interfaces : PC Keyboard Wedge, RS232, USB
Automatic trigger : Hand-free scanning when mounted in the stand
