Barcode Printers

Datamax - E - Class

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 1" - 4.3" (25.4 mm - 109.2 mm)
Max. Print Speed : 4" / Sec.
Interfaces : USB, Parallel port, RS232
Memory : 1MB Flash ; 2MB DRAM
Supply Roll Capacity : 5" Outer Diameter on 1.5"core

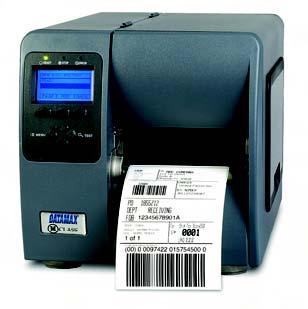

Datamax - M - Class

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 0.75" - 4.65" (19 mm - 118 mm)
Max. Print Speed : 6" - 10" / Sec.
Interfaces : USB, Parallel port, RS232
Memory : 2MB Flash ; 8MB DR / 4MB Flash ; 8MB DR / 8MB Flash ; 16MB DR
Supply Roll Capacity : 8" Outer Diameter on 1.5" to 3" core

Datamax - I - Class

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi / 406 dpi / 600 dpi
Media Width : 1" - 4.65" (25.4 mm - 118.11 mm)
Max. Print Speed : 4" - 12" / Sec.
Interfaces : Parallel port, RS232, Optional USB, Ethernet, and Twinax / Coax
Memory : 1MB Flash ; 8MB SDRAM / 2MB Flash ; 16MB SDRAM
Supply Roll Capacity : 8" Outer Diameter on 1.5" to 3 core

Datamax - W - Class

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 2" - 6.7" (50.8 mm - 170.18 mm) / 3" - 9" (76.2 mm - 228.6 mm)
Max. Print Speed : 6" - 8" / Sec.
Interfaces : Parallel port, RS232, Optional USB, Ethernet, and Twinax / Coax
Memory : 2MB Flash ; 16MB SDRAM
Supply Roll Capacity : 8" Outer Diameter on 1.5" to 3"core

TTP 243E Plus / 342 Plus

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 1" - 4.49" (25.4 mm - 114 mm)
Max. Print Speed : 3" / Sec. (TTP 243E Plus) ; 2" / Sec. (TTP 342 Plus)
Interfaces : Parallel port, RS232
Memory : 2MB Flash ; 2MB DRAM
Supply Roll Capacity : 4.3" (109 mm) OD for internal ; 8.4" (214 mm) OD for external

TTP 244ME Plus / 342M Plus

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 1" - 4.49" (25.4 mm - 114 mm)
Max. Print Speed : 4" / Sec. (TTP 244ME Plus) ; 2" / Sec. (TTP 342M Plus)
Interfaces : Parallel port, RS232
Memory : 2MB Flash ; 2MB DRAM
Supply Roll Capacity : 7" (178 mm) Outer Diameter

TTP 245 Plus / 343 Plus

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 0.78" - 4.4" (20 mm - 112 mm)
Max. Print Speed : 5" / Sec. (TTP 245 Plus) ; 3" / Sec. (TTP 343 Plus)
Interfaces : USB, Parallel port, RS232
Memory : 2MB Flash ; 8MB DRAM
Supply Roll Capacity : 5" (127 mm) OD for internal ; 8.4" (214 mm) OD for external

TTP 246M / 344M

Printer Type : Direct Thermal / Thermal Transfer
Resolution : 203 dpi / 300 dpi
Media Width : 1" - 4.65" (25.4 mm - 118 mm)
Max. Print Speed : 6" / Sec. (TTP 246M) ; 4" / Sec. (TTP 344M)
Interfaces : USB, Parallel port, RS232
Memory : 2MB Flash ; 2MB DRAM
Supply Roll Capacity : 8" (203.2 mm) Outer Diameter
